Kyocera ECOSYS PA4500x/PA5000x/PA5500x/PA6000x

B&W PRINTERS (paper sizes up to 8.5" × 14")

Tackle business problems today and in the future with the ECOSYS PA6000x Series, a versatile line of 4 single function black-and-white printers that offer a range of print speeds for your business to choose from. Increase cost savings through exceptional device durability. Enjoy crisp business prints with resolutions up to Fast1200. Access a user-friendly and intuitive display panel. Get advanced security features that keep your data protected. Optimize device uptime and reduce costs with Kyocera Fleet Services (KFS), a highly secure cloud-based monitoring solution.

Please Note:

Selected items that require additional options will automatically be selected.
Some items are not compatible with other options. Non-compatible options will be disabled from selection.

Step 1: Main Unit

Item/Description	Tips	Item #
ECOSYS PA4500xECOSYS PA4500x Configuration: B&W Printer - Print Print Speed: B&W – Simplex: 47 ppm (Letter), 38 ppm (Legal), 23 ppm (StatementR); B&W – Duplex: 23.5 ppm (Letter), 19 ppm (Legal) Power Requirements: 120V, 60Hz, 10A Weight: 32.2 lbs. (14.6 kg) W × D × H (inches): 15.4 × 16.4 × 12.1 W × D × H (mm): 391 × 417 × 307 Note: 1. The mainframe does ship standard with starter toner (yield: 6,000 pages based on ISO 19752).	ECOSYS PA4500x The items below are not compatible and cannot be selected: PT-320 (1203N70UN0) TK-3442 - Container (1T0C0T0US0) TK-3432 - Container (1T0C0W0US0) TK-3412 - Container (1T0C0X0US0)	110C0Y2US0
ECOSYS PA5000xECOSYS PA5000x Configuration: B&W Printer - Print Print Speed: B&W – Simplex: 52 ppm (Letter), 42 ppm (Legal), 76 ppm (Statement), 27 ppm (StatementR); B&W – Duplex: 36.5 ppm (Letter), 21 ppm (Legal) Power Requirements: 120V, 60Hz, 10A Weight: 35.5 lbs. (16.1 kg) W × D × H (inches): 15.4 × 16.4 × 13.5 W × D × H (mm): 391 × 417 × 343 Note: 1. The mainframe does ship standard with starter toner (yield: 8,000 pages based on ISO 19752).	ECOSYS PA5000x The items below are not compatible and cannot be selected: TK-3442 - Container (1T0C0T0US0) TK-3432 - Container (1T0C0W0US0) TK-3402 - Container (1T0C0Y0US0)	110C0X2US0
ECOSYS PA5500xECOSYS PA5500x Configuration: B&W Printer - Print Print Speed: B&W – Simplex: 57 ppm (Letter), 46 ppm (Legal), 84 ppm (Statement), 29 ppm (StatementR); B&W – Duplex: 40.5 ppm (Letter), 23 ppm (Legal) Power Requirements: 120V, 60Hz, 11.9A Weight: 35.5 lbs. (16.1 kg) W × D × H (inches): 15.4 × 16.4 × 13.5 W × D × H (mm): 391 × 417 × 343 Note: 1. The mainframe does ship standard with starter toner (yield: 10,000 pages based on ISO 19752).	ECOSYS PA5500x The items below are not compatible and cannot be selected: TK-3442 - Container (1T0C0T0US0) TK-3412 - Container (1T0C0X0US0) TK-3402 - Container (1T0C0Y0US0)	110C0W2US0
ECOSYS PA6000xECOSYS PA6000x Configuration: B&W Printer - Print Print Speed: B&W – Simplex: 62 ppm (Letter), 50 ppm (Legal); B&W – Duplex: 92 ppm (Statement), 32 ppm (StatementR) Power Requirements: 120V, 60Hz, 10A Weight: 35.7 lbs. (16.2 kg) W × D × H (inches): 16.1 × 16.4 × 14.3 W × D × H (mm): 409 × 417 × 363 Note: 1. The mainframe does ship standard with starter toner (yield: 11,000 pages based on ISO 19752).	ECOSYS PA6000x The items below are not compatible and cannot be selected: TK-3432 - Container (1T0C0W0US0) TK-3412 - Container (1T0C0X0US0) TK-3402 - Container (1T0C0Y0US0)	110C0T2US0

Step 2: Paper Handling & Cabinet Options

Item/Description	Tips	Item #
PF-3110PF-3110 500-Sheet Paper Tray - Legal Paper Size: 5.5" × 8.5" – 8.5" × 14", Envelope, Custom Paper Weight: 16 lb. Bond – 32 lb. Index (60 – 120 gsm) Weight: 8.4 lbs. (3.8 kg) W × D × H (inches): 14.9 × 16.1 × 4.8 W × D × H (mm): 378 × 409 × 122 Note: 1. Up to four of this option can be added. 2. This option cannot be installed with PF-3100 or any related options.	PF-3110 The items below are not compatible and cannot be selected: PF-3100 (1203S30KL0) PB-325 (1903N10UN0)	1203SA0KL1
PF-3100PF-3100 2,000-Sheet Large Capacity Paper Tray - Legal M Paper Size: 5.5" × 8.5" – 8.5" × 14", Envelope, Custom Weight: 16.5 lbs. (7.5 kg) W × D × H (inches): 13.6 × 16.6 × 14.6 W × D × H (mm): 345 × 422 × 371 Note: 1. By choosing this option, PB-325 will be added to your configuration. 2. This option cannot be installed with PF-3110, Cabinet Stand - Low or Cabinet Stand - High.	PF-3100 The item(s) below will be selected if this item is selected: PB-325 (1903N10UN0) The items below are not compatible and cannot be selected: PF-3110 (1203SA0KL1) Cabinet Stand - Low (855D200942) Cabinet Stand - High (855D200943)	1203S30KL0
PB-325PB-325 Base Unit for PF-3100 A required stand to hold PF-3100. Weight: 14.3 lbs. (6.5 kg) W × D × H (inches): 15 × 28 × 7.3 W × D × H (mm): 381 × 711 × 185 Note: 1. PF-3100 must be selected to add this option.	PB-325 At least one of the item(s) below must be selected to be able to select this item: PF-3100 (1203S30KL0)	1903N10UN0
Cabinet Stand - LowCabinet Stand - Low ECOSYS MA6000ifx Series and PA6000x Series Cabinet - Low Weight: 34 lbs. (15.4 kg) W × D × H (inches): 15 × 16.2 × 10 W × D × H (mm): 381 × 411 × 254 Note: 1. This option cannot be installed with PF-3100, Cabinet Stand - High or when the quantity of PF-3110 is less than two. 2. Cabinet Stand - Low can only be installed when the system is configured with two or more optional PF-3110.	Cabinet Stand - Low The items below are not compatible and cannot be selected: PF-3100 (1203S30KL0) PB-325 (1903N10UN0) Cabinet Stand - High (855D200943)	855D200942
Cabinet Stand - HighCabinet Stand - High ECOSYS MA6000ifx Series and PA6000x Series Cabinet - High Weight: 39 lbs. (17.7 kg) W × D × H (inches): 15 × 16.2 × 20 W × D × H (mm): 381 × 411 × 508 Note: 1. This option cannot be installed with PF-3100, Cabinet Stand - Low or when the quantity of PF-3110 is greater than one. 2. Cabinet Stand - High can only be installed when the system is configured with one or zero optional PF-3110.	Cabinet Stand - High The items below are not compatible and cannot be selected: PF-3100 (1203S30KL0) PB-325 (1903N10UN0) Cabinet Stand - Low (855D200942)	855D200943

Step 3: Device Accessories

	Item/Description	Tips	Item #	Thumbnail

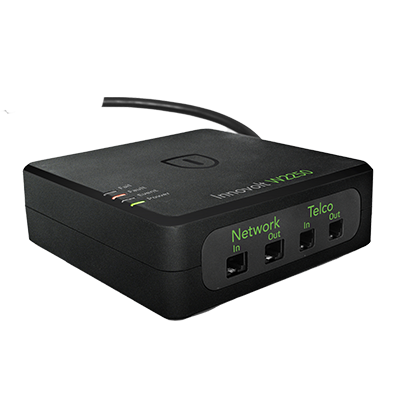

	W1500-15-120W1500-15-120 Innovolt Power Filter W1500-15-120 Power Filter protection for 15A based products including the ECOSYS PA4500x, ECOSYS PA5000x, ECOSYS PA5500x or ECOSYS PA6000x. Beyond typical surge or filter solutions, this option protects against damaging power disturbances before vital equipment can be harmed.	No tooltip available.	855D200897
	PT-320PT-320 250-Sheet Face-Up Rear Output Tray Gives you the capability of placing up to 250 sheets in the exit tray facing up. Weight: 2.15 lbs. (.96 kg) W × D × H (inches): 15.7 × 12.9 × 4.9 W × D × H (mm): 399 × 328 × 124 Note: 1. ECOSYS PA5000x, ECOSYS PA5500x or ECOSYS PA6000x must be selected to add this option. 2. The PT-320 is not compatible with the ECOSYS PA4500x.	PT-320 At least one of the item(s) below must be selected to be able to select this item: ECOSYS PA5000x (110C0X2US0) ECOSYS PA5500x (110C0W2US0) ECOSYS PA6000x (110C0T2US0)	1203N70UN0

Step 4: Connectivity Accessories

Item/Description	Tips	Item #
IB-32BIB-32B IEEE 1284 Compliant NIC Provides parallel network connectivity. Note: 1. This option cannot be installed with IB-50, IB-51, HD-17, HD-18 or HD-19.	IB-32B The items below are not compatible and cannot be selected: IB-50 (1505JV0UN0) IB-51 (1505J50UN0) HD-17 (1505MS0UN0) HD-18 (1505MT0UN0) HD-19 (1505MV0UN0)	1503N50UN1
IB-37IB-37 Wireless LAN/Interface (2.4GHz/5GHz multi-band) Provides faster Wi-Fi connectivity up to 5GHz. An expansion option that supports multi-band Wi-Fi (2.4GHz/5GHz) and enables high-speed wireless LAN communication. Note: 1. This option cannot be installed with IB-38.	IB-37 The items below are not compatible and cannot be selected: IB-38 (1503V10US0)	1503T80UN0
IB-38IB-38 Wireless Network Interface (2.4GHz) Provides Wi-Fi connectivity up to 2.4GHz. Note: 1. This option cannot be installed with IB-37.	IB-38 The items below are not compatible and cannot be selected: IB-37 (1503T80UN0)	1503V10US0

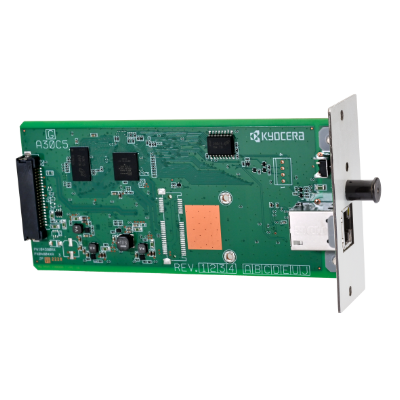

IB-50IB-50 Gigabit Ethernet Board for Dual NIC Required for Dual Network Configurations. This option provides the capability for this one device to go on 2 separate networks. Note: 1. This option cannot be installed with IB-32B, IB-51, HD-17, HD-18 or HD-19.	IB-50 The items below are not compatible and cannot be selected: IB-32B (1503N50UN1) IB-51 (1505J50UN0) HD-17 (1505MS0UN0) HD-18 (1505MT0UN0) HD-19 (1505MV0UN0)	1505JV0UN0

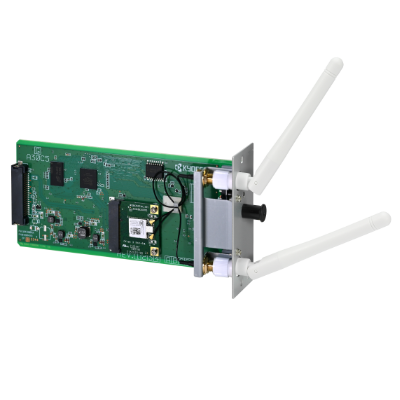

IB-51IB-51 Wireless LAN NIC - 328' Range Required for customers that want to connect the device to wireless networks with extended range. Note: 1. This option cannot be installed with IB-32B, IB-50, HD-17, HD-18 or HD-19.	IB-51 The items below are not compatible and cannot be selected: IB-32B (1503N50UN1) IB-50 (1505JV0UN0) HD-17 (1505MS0UN0) HD-18 (1505MT0UN0) HD-19 (1505MV0UN0)	1505J50UN0
UG-33UG-33 Thin Print Option Required for Unix Printing applications. Transmits print data using a high-compression method via a central server. It makes slow printouts and negative impacts on the network and productivity a thing of the past.	No tooltip available.	1603NT0UN0

Step 5: Memory Accessories

Item/Description	Tips	Item #
HD-17HD-17 Solid State Drive Memory Device (64 GB) Note: 1. This option cannot be installed with IB-32B, IB-50, IB-51, HD-18 or HD-19.	HD-17 The items below are not compatible and cannot be selected: IB-32B (1503N50UN1) IB-50 (1505JV0UN0) IB-51 (1505J50UN0) HD-18 (1505MT0UN0) HD-19 (1505MV0UN0)	1505MS0UN0
HD-18HD-18 Solid State Drive Memory Device (256 GB) Note: 1. This option cannot be installed with IB-32B, IB-50, IB-51, HD-17 or HD-19.	HD-18 The items below are not compatible and cannot be selected: IB-32B (1503N50UN1) IB-50 (1505JV0UN0) IB-51 (1505J50UN0) HD-17 (1505MS0UN0) HD-19 (1505MV0UN0)	1505MT0UN0
HD-19HD-19 Solid State Drive Memory Device (512 GB) Note: 1. This option cannot be installed with IB-32B, IB-50, IB-51, HD-17 or HD-18.	HD-19 The items below are not compatible and cannot be selected: IB-32B (1503N50UN1) IB-50 (1505JV0UN0) IB-51 (1505J50UN0) HD-17 (1505MS0UN0) HD-18 (1505MT0UN0)	1505MV0UN0
MM-20MM-20 Printer DIMM Memory 1 GB High-speed Dynamic Random-Access Memory Internally Configured Note: 1. This option cannot be installed with MM-21.	MM-20 The items below are not compatible and cannot be selected: MM-21 (1503WY0UN0)	1503WX0UN0
MM-21MM-21 Printer DIMM Memory 2 GB High-speed Dynamic Random-Access Memory Internally Configured Note: 1. This option cannot be installed with MM-20.	MM-21 The items below are not compatible and cannot be selected: MM-20 (1503WX0UN0)	1503WY0UN0

Step 6: Software Accessory Options

Item/Description	Tips	Item #
PCL Barcode Flash 3.0PCL Barcode Flash 3.0 PCL Barcode Flash Type D/E An advanced programming interface supporting PCL Barcodes, our unique Prescribe and OCR fonts.	No tooltip available.	855D200653
Card Authentication KitCard Authentication Kit Card Authentication Kit (B) Required for customers that want to purchase a card reader option. Note: 1. For your specific Card Authentication Kit needs, please consult with your Kyocera sales representative for the Kyocera Card Reader best for your business. 2. Photo is for illustrative purposes only. Your device may vary.	No tooltip available.	See-Notes
UG-50UG-50 TPM (Trusted Platform Module) Provides additional layers of security like Secure Boot and Run Time Integrity check.	No tooltip available.	1503WW0UN0
Data Encryption OverwriteData Encryption Overwrite Free activation with SSD Data Encryption Overwrite has free activation when purchasing an SSD.	No tooltip available.	Data-Encryption

Please Note:

The mainframe does ship standard with starter toners.

Step 7: Consumables & Additional Supplies

	Item/Description	Tips	Item #
Toner Container
	TK-3442 - Container TK-3442 - Container Black Toner Container Yield: 40,000 pages Based on printing on letter paper (ISO 19752) Note: 1. ECOSYS PA6000x must be selected to add this option.	TK-3442 - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS PA6000x (110C0T2US0)	1T0C0T0US0
	TK-3432 - ContainerTK-3432 - Container Black Toner Container Yield: 21,000 pages Based on printing on letter paper (ISO 19752) Note: 1. ECOSYS PA5500x must be selected to add this option.	TK-3432 - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS PA5500x (110C0W2US0)	1T0C0W0US0
	TK-3412 - ContainerTK-3412 - Container Black Toner Container Yield: 15,500 pages Based on printing on letter paper (ISO 19752) Note: 1. ECOSYS PA5000x must be selected to add this option.	TK-3412 - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS PA5000x (110C0X2US0)	1T0C0X0US0
	TK-3402 - ContainerTK-3402 - Container Black Toner Container Yield: 12,500 pages Based on printing on letter paper (ISO 19752) Note: 1. ECOSYS PA4500x must be selected to add this option.	TK-3402 - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS PA4500x (110C0Y2US0)	1T0C0Y0US0

Complete your configuration

Reset

Key Product Features

Speeds up to 62 ppm B&W
Media Capacity (std/max): 600 sheets/2,600 sheets
Up to 5 Line LCD Display
High quality output up to Fine 1200 dpi
KFS enabled
