ECOSYS P4060dn

Kyocera Product Configurator

Kyocera ECOSYS P4060dn

B&W PRINTER (paper sizes up to 12" × 18")

Kyocera’s ECOSYS P4060dn provides a way to print more efficiently than ever before. With a range of professional finishing options combined with Kyocera’s traditional reliability, you can print your documents with peace of mind. The very latest in security technology means that risks are minimized, keeping your data safe and your processes secure.

Please Note:

Selected items that require additional options will automatically be selected.
Some items are not compatible with other options. Non-compatible options will be disabled from selection.
We encourage you to select additional paper trays or a cabinet stand prior to finalizing your configuration.

Step 1: Main Unit

Step 2: Paper Handling & Cabinet Options

	Item/Description	Tips	Item #	Thumbnail
	PF-7100PF-7100 Dual 500-Sheet Paper Trays - Ledger Paper Size: 5.5" × 8.5" – 12" × 18" Paper Weight: 14 lb. Bond – 166 lb. Index (52 – 300 gsm) Weight: 50.8 lbs. (23 kg) W × D × H (inches): 23.3 × 20.4 × 39.6 W × D × H (mm): 592 × 518 × 1,006 Note: 1. This option cannot be installed with PF-7110 or Cabinet Stand.	PF-7100 The items below are not compatible and cannot be selected: PF-7110 (1203RC2US0) Cabinet Stand (855D200929) Stabilizer Kit (855D200803)	1203RB2US0
	PF-7110PF-7110 Dual 1,500-Sheet Paper Trays - Letter Paper Size: 8.5" × 11"/A4 only Paper Weight: 14 lb. Bond – 166 lb. Index (52 – 300 gsm) Weight: 66.2 lbs. (30 kg) W × D × H (inches): 23.7 × 26.2 × 12.7 W × D × H (mm): 602 × 665 × 323 Note: 1. This option cannot be installed with PF-7100 or Cabinet Stand.	PF-7110 The items below are not compatible and cannot be selected: PF-7100 (1203RB2US0) Cabinet Stand (855D200929) Stabilizer Kit (855D200803)	1203RC2US0
	Cabinet StandCabinet Stand Cabinet Stand Available for customers who do not require additional paper tray options. Weight: 40 lbs. (18.1 kg) W × D × H (inches): 23.6 × 26.2 × 10.9 W × D × H (mm): 599 × 665 × 277 Note: 1. This option cannot be installed with PF-7100 or PF-7110.	Cabinet Stand The items below are not compatible and cannot be selected: PF-7100 (1203RB2US0) PF-7110 (1203RC2US0)	855D200929
	Stabilizer KitStabilizer Kit Stabilizer Feet for Cabinet Stand Supporting brackets to prevent the printer from tipping. Note: 1. Cabinet Stand must be selected first before this option can be added.	Stabilizer Kit At least one of the item(s) below must be selected to be able to select this item: Cabinet Stand (855D200929)	855D200803
	PF-7120PF-7120 3,000-Sheet Large Capacity Side Tray - Letter Paper Size: 8.5" × 11"/A4 only Paper Weight: 14 lb. Bond – 166 lb. Index (52 – 300 gsm) Weight: 66.2 lbs. (30 kg) W × D × H (inches): 23.3 × 20.4 × 39.6 W × D × H (mm): 592 × 518 × 1,006 Note: 1. PF-7100, PF-7110 or Cabinet Stand must be selected first before this option can be added.	PF-7120 At least one of the item(s) below must be selected to be able to select this item: PF-7100 (1203RB2US0) PF-7110 (1203RC2US0) Cabinet Stand (855D200929)	1203RL2US0

Step 3: Output & Finishing Options

	Item/Description	Tips	Item #	Thumbnail
Internal
	JS-7100JS-7100 Job Separator Allows your printed document to be stored in the middle of the printer. Capacity: 100-sheets Paper Size: 5.5" × 8.5" – 12" × 18" Paper Weight: 14 lb. Bond – 166 Index (52 – 300 gsm) Weight: 1.6 lbs. (.7 kg) W × D × H (inches): 18.8 × 16.5 × 2.5 W × D × H (mm): 478 × 419 × 64 Note: 1. This option cannot be installed with DF-7120, DF-7110 or any related options.	JS-7100 The items below are not compatible and cannot be selected: DF-7120 (1203RV2US0) DF-7110 (1203RW2US0) AK-7100 (1703RG0UN0) BF-730 (1203ND0UN0) PH-7A (1203NK2US0) MT-730 (B) (1203N00UN1) SH-10 (1903JY0000) SH-12 (1903NB0UN0)	1203RN0UN0
External
	Item/Description	Tips	Item #	Thumbnail
	DF-7120DF-7120 1,000-Sheet Finisher (50-Sheet Staple) Stack/Staple Capacity: Main Tray: 1,000-sheets/50-sheets (up to 24 lb. Bond [90 gsm]) Paper Size: 5.5" × 8.5" – 12" × 18" Paper Weight: 14 lb. Bond – 166 lb. Index (52 – 300 gsm) Edge Staple Position: 3 Positions: Top Left, Bottom Left, Center Bind Weight: 66.2 lbs. (30 kg) W × D × H (inches): 21.6 × 24.4 × 41.3 W × D × H (mm): 549 × 620 × 1,049 Note: 1. This option cannot be installed with JS-7100, DF-7110 or any related options. 2. By choosing this option, AK-7100 will be added to your configuration.	DF-7120 At least one of the item(s) below must be selected to be able to select this item: PF-7100 (1203RB2US0) PF-7110 (1203RC2US0) Cabinet Stand (855D200929) The item(s) below will be selected if this item is selected: AK-7100 (1703RG0UN0) The items below are not compatible and cannot be selected: JS-7100 (1203RN0UN0) DF-7110 (1203RW2US0) BF-730 (1203ND0UN0) MT-730 (B) (1203N00UN1) SH-12 (1903NB0UN0)	1203RV2US0
	DF-7110DF-7110 4,000-Sheet Finisher (65-Sheet Staple) Stack/Staple Capacity: Main Tray (A): 4,000-sheets; Sub Tray (B): 200-sheets/65-sheets (up to 24 lb. Bond [90 gsm]) Paper Size: 5.5" × 8.5" – 12" × 18" Paper Weight: 14 lb. Bond – 166 lb. Index (52 – 300 gsm) Edge Staple Position: 3 Positions: Top Left, Bottom Left, Center Bind Weight: 26.5 lbs. (12 kg) W × D × H (inches): 23.9 × 26.3 × 41.8 W × D × H (mm): 607 × 668 × 1,062 Note: 1. This option cannot be installed with JS-7100, DF-7120 or any related options. 2. By choosing this option, AK-7100 will be added to your configuration.	DF-7110 At least one of the item(s) below must be selected to be able to select this item: PF-7100 (1203RB2US0) PF-7110 (1203RC2US0) Cabinet Stand (855D200929) The item(s) below will be selected if this item is selected: AK-7100 (1703RG0UN0) The items below are not compatible and cannot be selected: JS-7100 (1203RN0UN0) DF-7120 (1203RV2US0)	1203RW2US0
	AK-7100AK-7100 Attachment Kit for DF-7120 / DF-7110 Provides a bridge between the paper feeders and the mainframe. W × D × H (inches): 23.9 × 26.3 × 41.8 W × D × H (mm): 607 × 668 × 1,062 Note: 1. DF-7120 or DF-7110 must be selected to add this option.	AK-7100 At least one of the item(s) below must be selected to be able to select this item: DF-7120 (1203RV2US0) DF-7110 (1203RW2US0)	1703RG0UN0
	BF-730BF-730 Booklet and Tri-Folding Unit for DF-7110 Allows you to easily fold your document into a booklet format. Booklet Folder: supports 8.5" × 11", 8.5" × 14", 11" × 17" Fold Booklet (staple): 16 lb. – 24 lb. Bond (60 – 90 gsm) 16-sheets; 25 lb. – 28 lb. Bond (91 – 105 gsm) 13-sheets Fold Booklet (no staple): 16 lb. – 24 lb. Bond (60 – 90 gsm) 5-sheets; 25 lb. Bond – 72 lb. Index (91 – 120 gsm) 3-sheets; 32 lb. Bond – 110 lb. Cover (121 – 256 gsm) 1-sheet Trifold: supports 8.5" × 11" only: 16 lb. – 24 lb. Bond (60 – 90 gsm) 5-sheets; 25 lb. Bond – 72 lb. Index (91 – 120 gsm) 3-sheets; 16 lb. – 28 lb. Bond (60 – 105 gsm) 1-sheet W × D × H (inches): 23.9 × 26.3 × 41.8 W × D × H (mm): 607 × 668 × 1,062 Note: 1. DF-7110 must be selected to add this option.	BF-730 At least one of the item(s) below must be selected to be able to select this item: DF-7110 (1203RW2US0) AK-7100 (1703RG0UN0)	1203ND0UN0
	PH-7APH-7A Punch Unit for DF-7120 / DF-7110 2 and 3 hole punch capability when added to the DF-7120 or DF-7110 Paper Size: 5.5" × 8.5" – 12" × 18" Paper Weight: 14 lb. Bond – 166 lb. Index (52 – 300 gsm) Note: 1. DF-7120 or DF-7110 must be selected to add this option.	PH-7A At least one of the item(s) below must be selected to be able to select this item: DF-7120 (1203RV2US0) DF-7110 (1203RW2US0)	1203NK2US0
	MT-730 (B)MT-730 (B) 7-Bin Mailbox for DF-7110 Supports: 16 lb. Bond – 90 lb. Index (60 – 163 gsm) Stack Capacity per Bin: 100-sheets: 5.5" × 8.5", 8.5" × 11"; 50-sheets: 8.5" × 14", 11" × 17" Weight: 22.1 lbs. (10 kg) W × D × H (inches): 21 × 15.8 × 18.5 W × D × H (mm): 533 × 401 × 470 Note: 1. DF-7110 must be selected to add this option.	MT-730 (B) At least one of the item(s) below must be selected to be able to select this item: DF-7110 (1203RW2US0) AK-7100 (1703RG0UN0)	1203N00UN1

Step 4: Device Accessories

	Item/Description	Tips	Item #	Thumbnail

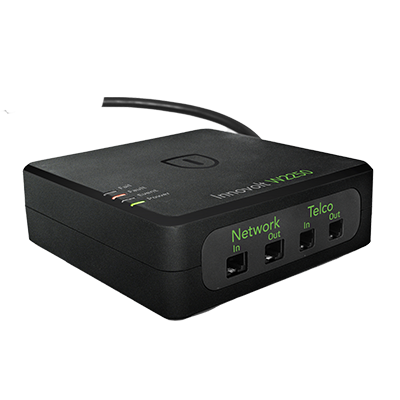

	W1500-15-120W1500-15-120 Innovolt Power Filter W1500-15-120 Power Filter protection for lighter use 15A based products including the ECOSYS P4060dn. Beyond typical surge or filter solutions, this option protects against damaging power disturbances before vital equipment can be harmed.	No tooltip available.	855D200897
	Banner Guide 10Banner Guide 10 MPT Guide Attachment - Banner Paper Feeding Required for customers that want to do banner printing (up to 12" × 48"). W × D × H (inches): 15.8 × 7.6 × 15.7 W × D × H (mm): 401 × 193 × 399 Note: 1. When this item is selected, you'll need to manually add its width (listed above) to your final dimensions.	No tooltip available.	1203RP0UN0
	NK-7110 (B)NK-7110 (B) Numeric Keypad An optional, external, numeric hard keypad that is installed next to the Touch Screen Interface on the device.	No tooltip available.	1903RT0US1

Step 5: Connectivity Accessories

	Item/Description	Tips	Item #	Thumbnail
	UG-33UG-33 Thin Print Option Required for Unix Printing applications. Provides the ability to print large files more efficiently, reduce network traffic and also with enhance security features.	No tooltip available.	1603NT0UN0
	UG-34UG-34 Optional Printer Emulation Required for IBM ProPrinter, Line Printer and EPSON LQ-850 datastreams.	No tooltip available.	1603NX0UN0
	IB-50IB-50 Gigabit Ethernet Board for Dual NIC Required for Dual Network Configurations. This option provides the capability for this one device to go on 2 separate networks.	No tooltip available.	1505JV0UN0
	IB-51IB-51 Wireless LAN NIC - 328' Range Required for customers that want to connect the device to wireless networks with extended range.	No tooltip available.	1505J50UN0

Step 6: Software Accessory Options

	Item/Description	Tips	Item #	Thumbnail
	Card Authentication KitCard Authentication Kit Card Authentication Kit (B) Required for customers that want to purchase a card reader option. Note: 1. For your specific Card Authentication Kit needs, please consult with your Kyocera sales representative for the Kyocera Card Reader best for your business. 2. Photo is for illustrative purposes only. Your device may vary.	No tooltip available.	See-Notes
	Data Security Kit (E)Data Security Kit (E) Hard Drive Encryption and Overwrite Kit Required for customers that require FIPS 140-2 for Communication and HCD-PP certification.	No tooltip available.	1603MS0UN0

Please Note:

The mainframe does ship standard with starter toner.

Step 7: Consumables & Additional Supplies

	Item/Description	Tips	Item #	Thumbnail
Toner Container
	TK-6332 - ContainerTK-6332 - Container Black Toner Container Yield: 32,000 pages Based on printing on letter paper with 6% coverage	No tooltip available.	1T02RS0US0
Additional Supplies
	Item/Description	Tips	Item #	Thumbnail
	SH-10SH-10 Staples (5,000 pieces × 3 Cartridges/Case) Note: 1. DF-7120 or BF-730 must be selected to add this option.	SH-10 At least one of the item(s) below must be selected to be able to select this item: DF-7120 (1203RV2US0) BF-730 (1203ND0UN0)	1903JY0000
	SH-12SH-12 Staples (5,000 pieces × 3 Cartridges/Case) Note: 1. DF-7110 must be selected to add this option.	SH-12 At least one of the item(s) below must be selected to be able to select this item: DF-7110 (1203RW2US0)	1903NB0UN0

Complete your configuration

Key Product Features

Speeds up to 60 ppm B&W
Media Capacity (std/max): 1,150 sheets/7,150 sheets
9" Color Touch Screen Panel
High quality output up to 1200 × 1200 dpi
Advanced Finishing Options for Professional Output

HyPAS-enabled for Kyocera solutions and apps, and KFS enabled
Apple AirPrint^®, Mopria^® and KYOCERA Mobile Print support

Show More Features

Current Configuration

W × D × H 0" × 0" × 0"
0mm × 0mm × 0mm

View Selected Items
