Kyocera Product Configurator

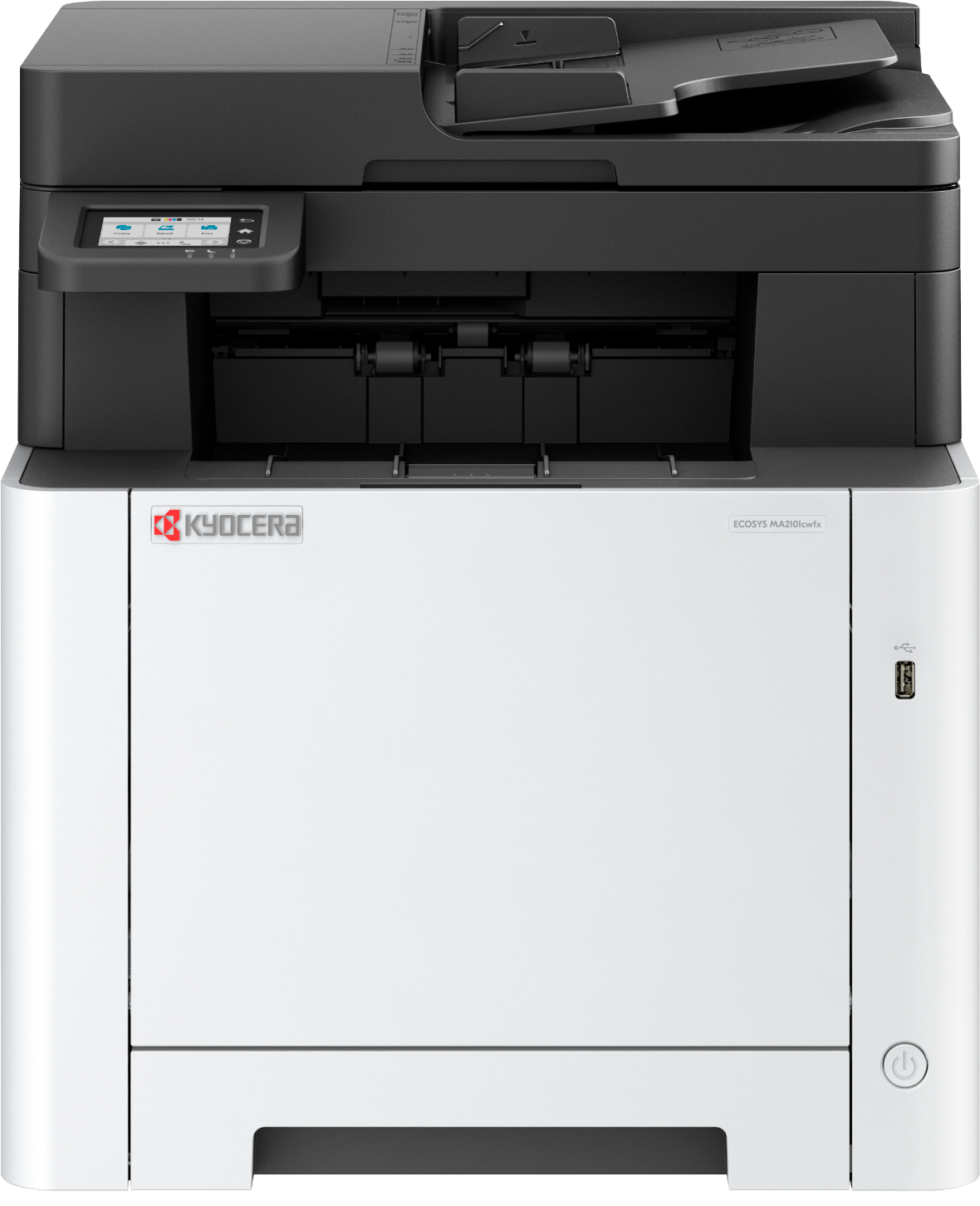

ECOSYS MA2101cwfx/MA2600cwx/MA2600cwfx

Kyocera ECOSYS MA2101cwfx/MA2600cwx/MA2600cwfx

COLOR MFPs (paper sizes up to 8.5" × 14")

The ECOSYS MA2101cwfx, ECOSYS MA2600cwx and ECOSYS MA2600cwfx are versatile color network MFPs designed for small workgroups and individual users that seek maximum productivity, reliability and affordability. Developed to support the demands of today’s mobile workforce, these devices deliver professional color output as well as black-and-white up to 27 pages per minute. With an easy-to-navigate user interface, you can access multiple time saving features at your fingertips.

Please Note:

Selected items that require additional options will automatically be selected.
Some items are not compatible with other options; non-compatible options will be disabled from selection.

Step 1: Main Unit

Item/Description	Tips	Item #

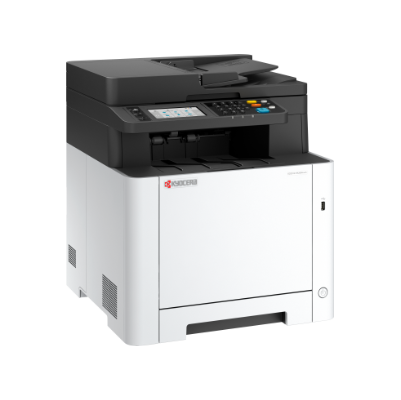

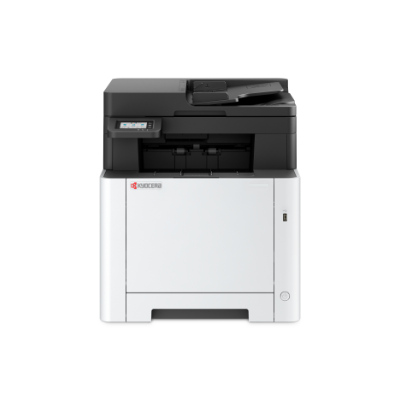

ECOSYS MA2101cwfxECOSYS MA2101cwfx Configuration: Color MFP - Print/Scan/Copy/Fax Print Speed: B&W and Color – 22 ppm (Letter), 18 ppm (Legal) Power Requirements: 120V, 60Hz, 8.6A Weight: 57.3 lbs. (26 kg) W × D × H (inches): 16.1 × 16.4 × 18 W × D × H (mm): 409 × 417 × 457 Note: 1. Includes a 50-Sheet Automatic Document Processor. 2. The mainframe does ship standard with starter toner (yield: 1,500 pages Color and B&W based on ISO 19798).	ECOSYS MA2101cwfx The items below are not compatible and cannot be selected: TK-5452C - Container (1T0C0DCUS0) TK-5452M - Container (1T0C0DBUS0) TK-5452Y - Container (1T0C0DAUS0) TK-5452K - Container (1T0C0D0US0)	110C222US0

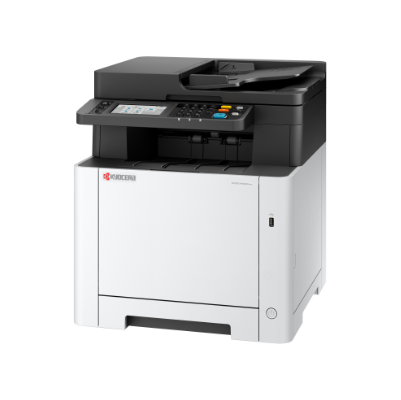

ECOSYS MA2600cwxECOSYS MA2600cwx Configuration: Color MFP - Print/Scan/Copy Print Speed: B&W and Color – 27 ppm (Letter), 22 ppm (Legal) Power Requirements: 120V, 60Hz, 8.6A Weight: 57.3 lbs. (26 kg) W × D × H (inches): 16.1 × 16.4 × 18 W × D × H (mm): 409 × 417 × 457 Note: 1. Includes a 50-Sheet Dual Scan Document Processor. 2. The mainframe does ship standard with starter toner (yield: 1,500 pages Color and B&W based on ISO 19798).	ECOSYS MA2600cwx The items below are not compatible and cannot be selected: TK-5492C - Container (1T0C22CUS1) TK-5492M - Container (1T0C22BUS1) TK-5492Y - Container (1T0C22AUS1) TK-5492K - Container (1T0C220US1) TK-5482C - Container (1T0C22CUS0) TK-5482M - Container (1T0C22BUS0) TK-5482Y - Container (1T0C22AUS0) TK-5482K - Container (1T0C220US0)	110C1G2US0

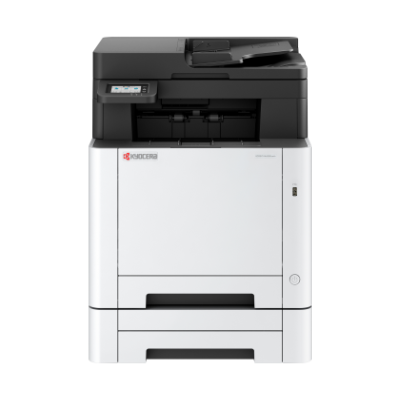

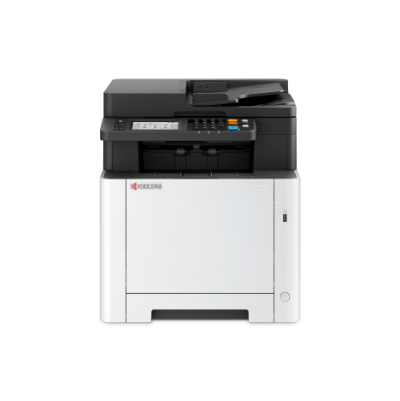

ECOSYS MA2600cwfxECOSYS MA2600cwfx Configuration: Color MFP - Print/Scan/Copy/Fax Print Speed: B&W and Color – 27 ppm (Letter), 22 ppm (Legal) Power Requirements: 120V, 60Hz, 8.6A Weight: 57.3 lbs. (26 kg) W × D × H (inches): 16.1 × 16.4 × 18 W × D × H (mm): 409 × 417 × 457 Note: 1. Includes a 50-Sheet Dual Scan Document Processor. 2. The mainframe does ship standard with starter toner (yield: 1,500 pages Color and B&W based on ISO 19798).	ECOSYS MA2600cwfx The items below are not compatible and cannot be selected: TK-5492C - Container (1T0C22CUS1) TK-5492M - Container (1T0C22BUS1) TK-5492Y - Container (1T0C22AUS1) TK-5492K - Container (1T0C220US1) TK-5482C - Container (1T0C22CUS0) TK-5482M - Container (1T0C22BUS0) TK-5482Y - Container (1T0C22AUS0) TK-5482K - Container (1T0C220US0)	110C0D2US0

Step 2: Paper Handling Accessories

	Item/Description	Tips	Item #	Thumbnail

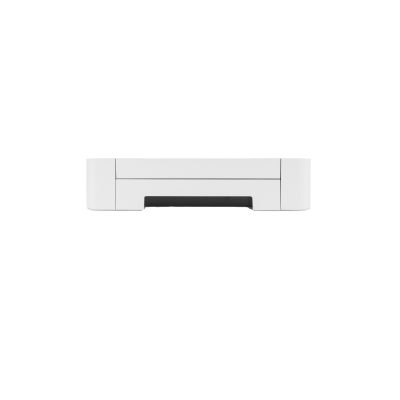

	PF-5110PF-5110 250-Sheet Paper Tray - Legal Paper Size: 5.5" × 8.5" – 8.5" × 14" (Statement to Legal) Paper Weight: 16 lb. Bond – 90 lb. Index (60 – 163 gsm) Weight: 8 lbs. (3.6 kg) W × D × H (inches): 16.2 × 17.6 × 5.8 W × D × H (mm): 411 × 447 × 147	No tooltip available.	1203R60UN0

Step 3: Device Accessories

	Item/Description	Tips	Item #	Thumbnail

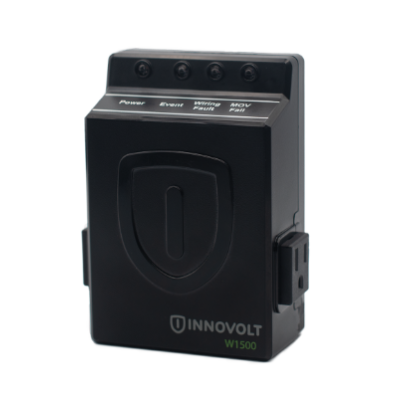

	W1500-15-120W1500-15-120 Innovolt Power Filter W1500-15-120 Power Filter protection for 15A based products including the ECOSYS MA2101cwfx, ECOSYS MA2600cwx and ECOSYS MA2600cwfx. Beyond typical surge or filter solutions, this option protects against damaging power disturbances before vital equipment can be harmed.	No tooltip available.	855D200897

Step 4: Connectivity Accessories

	Item/Description	Tips	Item #	Thumbnail
	UG-33UG-33 Thin Print Option Required for Unix Printing applications. Transmits print data using a high-compression method via a central server. It makes slow printouts and negative impacts on the network and productivity a thing of the past.	No tooltip available.	1603NT0UN0
	UG-51UG-51 TPM (Trusted Platform Module) Provides additional layers of security like Secure Boot and Run Time Integrity check.	No tooltip available.	1503X40UN0

Step 5: Software Accessory Options

	Item/Description	Tips	Item #	Thumbnail

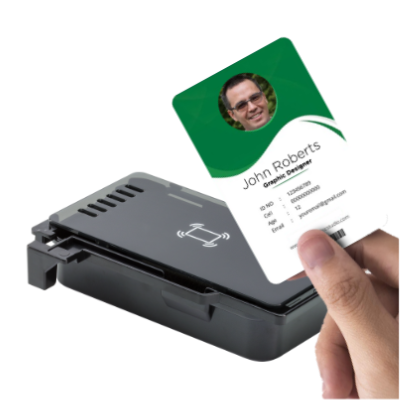

	Card Authentication KitCard Authentication Kit Card Authentication Kit (B) Required for customers that want to purchase a card reader option. Note: 1. For your specific Card Authentication Kit needs, please consult with your Kyocera sales representative for the Kyocera Card Reader best for your business. 2. Photo is for illustrative purposes only. Your device may vary.	No tooltip available.	See-Notes

Step 6: Memory Accessories

	Item/Description	Tips	Item #	Thumbnail

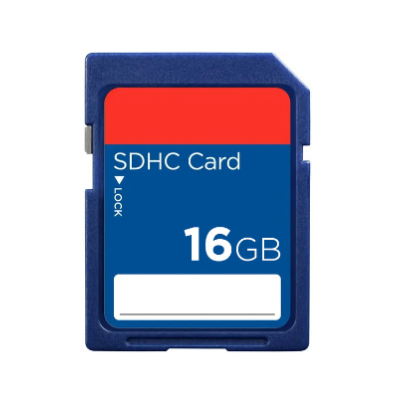

	SDHC Card-16GSDHC Card-16G Secure Digital High Capacity Card Memory for Storage (16 GB) Note: 1. This option cannot be installed with SDHC Card-32G.	SDHC Card-16G The items below are not compatible and cannot be selected: SDHC Card-32G (855D200648)	855D200647

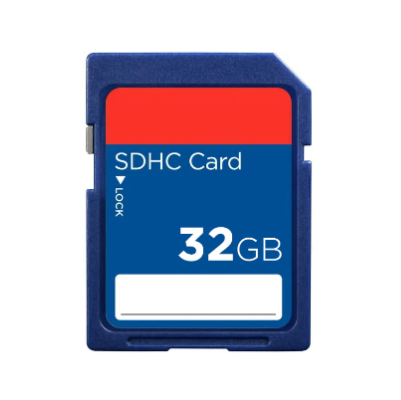

	SDHC Card-32GSDHC Card-32G Secure Digital High Capacity Card Memory for Storage (32 GB) Note: 1. This option cannot be installed with SDHC Card-16G.	SDHC Card-32G The items below are not compatible and cannot be selected: SDHC Card-16G (855D200647)	855D200648

Please Note:

The mainframe does ship standard with starter toners.

Step 7: Consumables

Toner Containers
	Item/Description	Tips	Item #	Thumbnail
	TK-5452C - ContainerTK-5452C - Container Cyan Toner Container Yield: 3,200 pages Based on printing on letter paper (ISO 19798) Note: 1. ECOSYS MA2600cwx or ECOSYS MA2600cwfx must be selected to add this option.	TK-5452C - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS MA2600cwx (110C1G2US0) ECOSYS MA2600cwfx (110C0D2US0)	1T0C0DCUS0

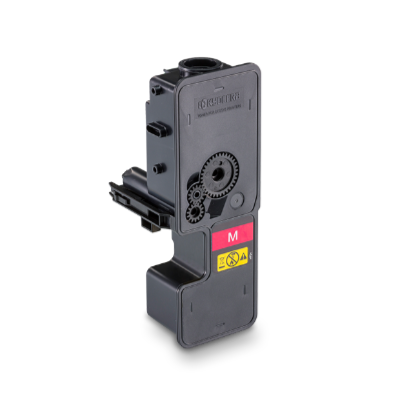

	TK-5452M - ContainerTK-5452M - Container Magenta Toner Container Yield: 3,200 pages Based on printing on letter paper (ISO 19798) Note: 1. ECOSYS MA2600cwx or ECOSYS MA2600cwfx must be selected to add this option.	TK-5452M - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS MA2600cwx (110C1G2US0) ECOSYS MA2600cwfx (110C0D2US0)	1T0C0DBUS0

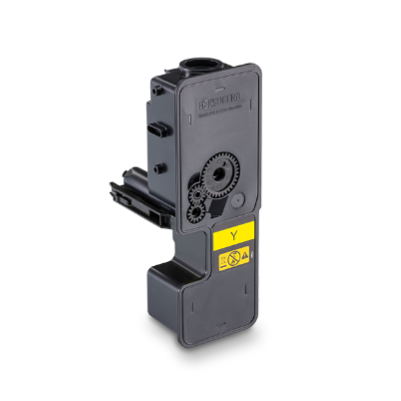

	TK-5452Y - ContainerTK-5452Y - Container Yellow Toner Container Yield: 3,200 pages Based on printing on letter paper (ISO 19798) Note: 1. ECOSYS MA2600cwx or ECOSYS MA2600cwfx must be selected to add this option.	TK-5452Y - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS MA2600cwx (110C1G2US0) ECOSYS MA2600cwfx (110C0D2US0)	1T0C0DAUS0

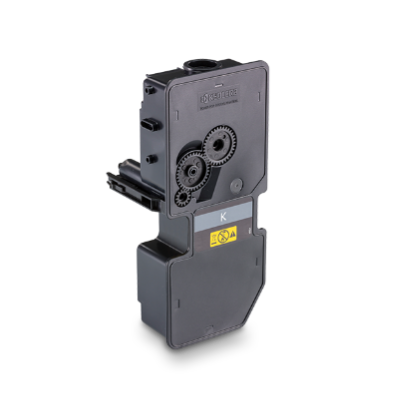

	TK-5452K - ContainerTK-5452K - Container Black Toner Container Yield: 4,100 pages Based on printing on letter paper (ISO 19798) Note: 1. ECOSYS MA2600cwx or ECOSYS MA2600cwfx must be selected to add this option.	TK-5452K - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS MA2600cwx (110C1G2US0) ECOSYS MA2600cwfx (110C0D2US0)	1T0C0D0US0

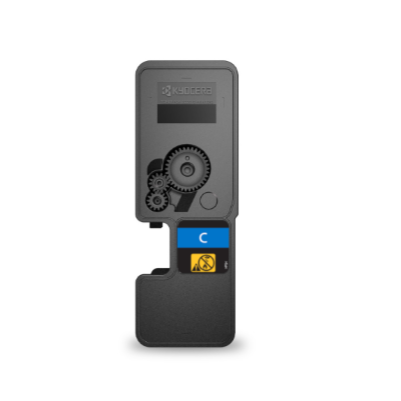

	TK-5492C - ContainerTK-5492C - Container High-Yield Cyan Toner Container Yield: 2,400 pages Based on printing on letter paper (ISO 19798) Note: 1. ECOSYS MA2101cwfx must be selected to add this option.	TK-5492C - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS MA2101cwfx (110C222US0)	1T0C22CUS1

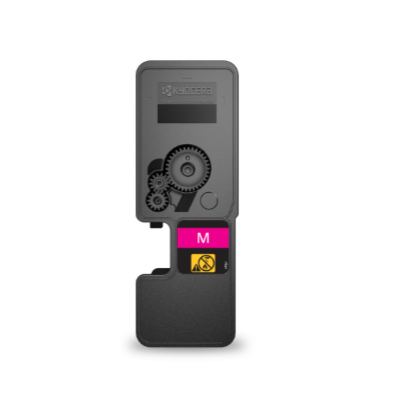

	TK-5492M - ContainerTK-5492M - Container High-Yield Magenta Toner Container Yield: 2,400 pages Based on printing on letter paper (ISO 19798) Note: 1. ECOSYS MA2101cwfx must be selected to add this option.	TK-5492M - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS MA2101cwfx (110C222US0)	1T0C22BUS1

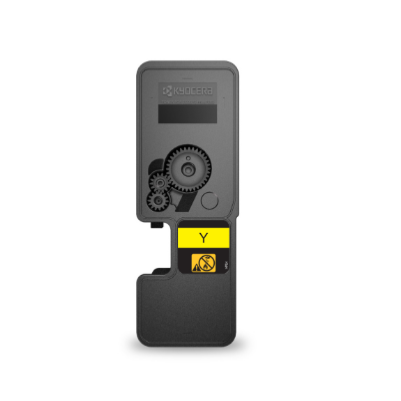

	TK-5492Y - ContainerTK-5492Y - Container High-Yield Yellow Toner Container Yield: 2,400 pages Based on printing on letter paper (ISO 19798) Note: 1. ECOSYS MA2101cwfx must be selected to add this option.	TK-5492Y - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS MA2101cwfx (110C222US0)	1T0C22AUS1

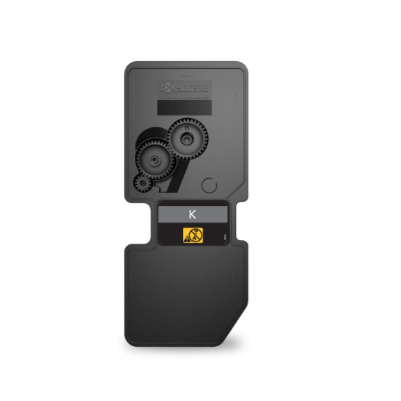

	TK-5492K - ContainerTK-5492K - Container High-Yield Black Toner Container Yield: 2,800 pages Based on printing on letter paper (ISO 19798) Note: 1. ECOSYS MA2101cwfx must be selected to add this option.	TK-5492K - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS MA2101cwfx (110C222US0)	1T0C220US1
	TK-5482C - ContainerTK-5482C - Container Cyan Toner Container Yield: 1,250 pages Based on printing on letter paper (ISO 19798) Note: 1. ECOSYS MA2101cwfx must be selected to add this option.	TK-5482C - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS MA2101cwfx (110C222US0)	1T0C22CUS0
	TK-5482M - ContainerTK-5482M - Container Magenta Toner Container Yield: 1,250 pages Based on printing on letter paper (ISO 19798) Note: 1. ECOSYS MA2101cwfx must be selected to add this option.	TK-5482M - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS MA2101cwfx (110C222US0)	1T0C22BUS0
	TK-5482Y - ContainerTK-5482Y - Container Yellow Toner Container Yield: 1,250 pages Based on printing on letter paper (ISO 19798) Note: 1. ECOSYS MA2101cwfx must be selected to add this option.	TK-5482Y - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS MA2101cwfx (110C222US0)	1T0C22AUS0
	TK-5482K - ContainerTK-5482K - Container Black Toner Container Yield: 1,250 pages Based on printing on letter paper (ISO 19798) Note: 1. ECOSYS MA2101cwfx must be selected to add this option.	TK-5482K - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS MA2101cwfx (110C222US0)	1T0C220US0
