ECOSYS M8124cidn/M8130cidn

Kyocera Product Configurator

Kyocera ECOSYS M8124cidn/M8130cidn

COLOR MFPs (paper sizes up to 11" × 17")

Ideal for small business and workgroup environments, the ECOSYS M8130cidn Series of color multifunctional printers packs best-in-class network print, copy, scan and fax performance into one affordable, space-saving platform. They deliver outstanding image quality, ultra-reliability and award-winning long-life consumables. Boasting a modular design, and an enhanced Color Touch Screen Interface (TSI), these systems are exceptionally easy to install, operate and service.

Please Note:

Selected items that require additional options will automatically be selected.
Some items are not compatible with other options. Non-compatible options will be disabled from selection.
We encourage you to select additional paper trays or a cabinet stand prior to finalizing your configuration.

Step 1: Main Unit

	Item/Description	Tips	Item #	Thumbnail
	ECOSYS M8124cidnECOSYS M8124cidn Configuration: Color MFP - Print/Scan/Copy/Optional Fax Print Speed: B&W and Color – 24 ppm (Letter), 12 ppm (Legal), 12 ppm (Ledger) Power Requirements: 120V, 60Hz, 7.2A Weight: 167.6 lbs. (76 kg) W × D × H (inches): 23.2 × 23.2 × 29.6 W × D × H (mm): 589 × 589 × 752 Note: 1. Includes a 50-Sheet Reversing Automatic Document Processor. 2. The mainframe does ship standard with starter toner (yield: 1,500 pages Color and 3,000 pages B&W based on ISO 19798).	ECOSYS M8124cidn The items below are not compatible and cannot be selected: DF-470 (1205JS0UN0) AK-470 (1703NS0UN0) SH-10 (1903JY0000)	1102P42US0
	ECOSYS M8130cidnECOSYS M8130cidn Configuration: Color MFP - Print/Scan/Copy/Optional Fax Print Speed: B&W and Color – 30 ppm (Letter), 15 ppm (Legal), 15 ppm (Ledger) Power Requirements: 120V, 60Hz, 7.2A Weight: 174.2 lbs. (79 kg) W × D × H (inches): 23.2 × 23.2 × 29.6 W × D × H (mm): 589 × 589 × 752 Note: 1. Includes a 50-Sheet Reversing Automatic Document Processor. 2. The mainframe does ship standard with starter toner (yield: 1,500 pages Color and 3,000 pages B&W based on ISO 19798).	No tooltip available.	1102P32US0

Step 2: Paper Handling, Cabinet & Riser Options

	Item/Description	Tips	Item #	Thumbnail
	PF-470PF-470 500-Sheet Paper Trays - Ledger Paper Size: 5.5" × 8.5" – 11" × 17" Paper Weight: 13 lb. Bond – 42 lb. Index (52 – 163 gsm) Weight: 46.3 lbs. (21 kg) W × D × H (inches): 23.2 × 23.1 × 13.8 W × D × H (mm): 589 × 587 × 351 Note: 1. This option cannot be installed with PF-471 or Cabinet Stand.	PF-470 The items below are not compatible and cannot be selected: PF-471 (1203NN2US0) Cabinet Stand (855D200598)	1203NP2US0
	PF-471PF-471 Dual 500-Sheet Paper Trays - Ledger Paper Size: 5.5" × 8.5" – 11" × 17" Paper Weight: 13 lb. Bond – 42 lb. Index (52 – 163 gsm) Weight: 46.3 lbs. (21 kg) W × D × H (inches): 23.2 × 23.1 × 13.8 W × D × H (mm): 589 × 587 × 351 Note: 1. This option cannot be installed with PF-470 or Cabinet Stand.	PF-471 The items below are not compatible and cannot be selected: PF-470 (1203NP2US0) Cabinet Stand (855D200598)	1203NN2US0
	Cabinet StandCabinet Stand ECOSYS M8130cidn Series and ECOSYS M4132idn Series Cabinet Available for customers who do not require additional paper tray options. Weight: 36.6 lbs. (16.6 kg) W × D × H (inches): 23.3 × 23.3 × 14 W × D × H (mm): 592 × 592 × 356 Note: 1. This option cannot be installed with PF-470 or PF-471.	Cabinet Stand The items below are not compatible and cannot be selected: PF-470 (1203NP2US0) PF-471 (1203NN2US0)	855D200598

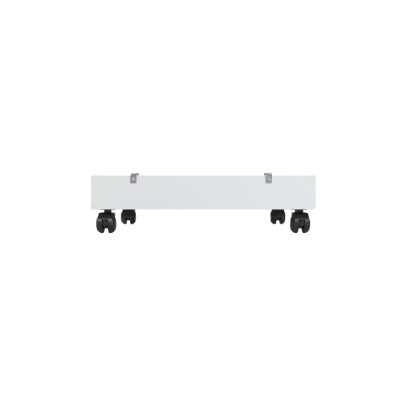

	RiserRiser ECOSYS M8130cidn Series and ECOSYS M4132idn Series Riser Available for maximum number of paper trays installed onto the device. Weight: 22.1 lbs. (10 kg) W × D × H (inches): 23.3 × 21.9 × 6.1 W × D × H (mm): 592 × 556 × 155 Note: 1. PF-470, PF-471 or Cabinet Stand must be selected to add this option.	Riser At least one of the item(s) below must be selected to be able to select this item: PF-470 (1203NP2US0) PF-471 (1203NN2US0) Cabinet Stand (855D200598)	855D200599

Step 3: Output & Finishing Options

	Item/Description	Tips	Item #	Thumbnail
	DF-470DF-470 500-Sheet Finisher for ECOSYS M8130cidn Stack/Staple Capacity: Stack – 500 Sheets / Staple – 50 Sheets (Letter), 30 Sheets (Legal/Ledger) Paper Size: 5.5" × 8.5" – 11" × 17" Paper Weight: 16 lb. Bond – 140 lb. Index (45 – 256 gsm) Edge Staple Position: 3 Positions Weight: 26.4 lbs. (12 kg) W × D × H (inches): 16.4 × 20.6 × 10.9 W × D × H (mm): 417 × 523 × 277 Note: 1. ECOSYS M8130cidn must be selected to add this option. 2. By choosing this option, AK-470 will be added to your configuration.	DF-470 At least one of the item(s) below must be selected to be able to select this item: ECOSYS M8130cidn (1102P32US0) The item(s) below will be selected if this item is selected: AK-470 (1703NS0UN0)	1205JS0UN0
	AK-470AK-470 Attachment Kit/Bridge Unit for the DF-470 When installing the DF-470 on the ECOSYS M8130cidn, the AK-470 is required to complete the attachment process. Note: 1. DF-470 must be selected to add this option.	AK-470 At least one of the item(s) below must be selected to be able to select this item: DF-470 (1205JS0UN0)	1703NS0UN0

Step 4: Device Accessories

Step 5: Connectivity Accessories

	Item/Description	Tips	Item #	Thumbnail
	Fax System 13Fax System 13 Fax Board Required for customers that need Fax capability. Fax/Network Fax Kit (can be installed in the lower slot only).	No tooltip available.	1503S42USJ
	UG-33UG-33 Thin Print Option Required for Unix Printing applications. Transmits print data using a high-compression method via a central server. It makes slow printouts and negative impacts on the network and productivity a thing of the past.	No tooltip available.	1603NT0UN0
	IB-50IB-50 Gigabit Ethernet Board for Dual NIC Required for Dual Network Configurations. This option provides the capability for this one device to go on 2 separate networks.	No tooltip available.	1505JV0UN0
	IB-51IB-51 Wireless LAN NIC - 328' Range Required for customers that want to connect the device to wireless networks with extended range.	No tooltip available.	1505J50UN0

Step 6: Memory Accessories

	Item/Description	Tips	Item #	Thumbnail
	HD-6HD-6 Solid State Drive Memory Device (32 GB) Note: 1. HD or SDHC is required to enable HyPAS applications. 2. This option cannot be installed with HD-7.	HD-6 The items below are not compatible and cannot be selected: HD-7 (1505J80UN0)	1505J40UN0
	HD-7HD-7 Solid State Drive Memory Device (128 GB) Note: 1. HD or SDHC is required to enable HyPAS applications. 2. This option cannot be installed with HD-6.	HD-7 The items below are not compatible and cannot be selected: HD-6 (1505J40UN0)	1505J80UN0
	SDHC Card-16GSDHC Card-16G Secure Digital High Capacity Card Memory for Storage (16 GB) Note: 1. HD or SDHC is required to enable HyPAS applications. 2. This option cannot be installed with SDHC Card-32G.	SDHC Card-16G The items below are not compatible and cannot be selected: SDHC Card-32G (855D200648)	855D200647
	SDHC Card-32GSDHC Card-32G Secure Digital High Capacity Card Memory for Storage (32 GB) Note: 1. HD or SDHC is required to enable HyPAS applications. 2. This option cannot be installed with SDHC Card-16G.	SDHC Card-32G The items below are not compatible and cannot be selected: SDHC Card-16G (855D200647)	855D200648
	SD-144-1GB (DDR3)SD-144-1GB (DDR3) Printer DIMM Memory (1 GB) High-speed Dynamic Random-Access Memory Internally Configured Note: 1. This option cannot be installed with SD-144-2GB (DDR3).	SD-144-1GB (DDR3) The items below are not compatible and cannot be selected: SD-144-2GB (DDR3) (855D200714)	855D200662
	SD-144-2GB (DDR3)SD-144-2GB (DDR3) Printer DIMM Memory (2 GB) High-speed Dynamic Random-Access Memory Internally Configured Note: 1. This option cannot be installed with SD-144-1GB (DDR3).	SD-144-2GB (DDR3) The items below are not compatible and cannot be selected: SD-144-1GB (DDR3) (855D200662)	855D200714

Step 7: Software Accessory Options

	Item/Description	Tips	Item #	Thumbnail
	Card Authentication KitCard Authentication Kit Card Authentication Kit (B) Required for customers that want to purchase a card reader option. Note: 1. For your specific Card Authentication Kit needs, please consult with your Kyocera sales representative for the Kyocera Card Reader best for your business. 2. Photo is for illustrative purposes only. Your device may vary.	No tooltip available.	See-Notes
	Data Security Kit (E)Data Security Kit (E) Hard Drive Encryption/Overwrite Kit, license key activation (requires an HD-6 or HD-7). Note: 1. HD-6 or HD-7 must be selected first before this option can be added.	Data Security Kit (E) At least one of the item(s) below must be selected to be able to select this item: HD-6 (1505J40UN0) HD-7 (1505J80UN0)	1603MS0UN0
	Scan Extension Kit (A)Scan Extension Kit (A) Scan Extension Kit - Searchable PDF An extended option for OCR scanning. Enables output of scanned documents into text searchable PDF, or further converting into Microsoft Word, Excel and PowerPoint formats. Note: 1. HD-6, HD-7, SDHC Card-16G or SDHC Card-32G must be selected first before this option can be added.	Scan Extension Kit (A) At least one of the item(s) below must be selected to be able to select this item: HD-6 (1505J40UN0) HD-7 (1505J80UN0) SDHC Card-16G (855D200647) SDHC Card-32G (855D200648)	1603P10UN0

Please Note:

The mainframe does ship standard with starter toners.

Step 8: Consumables & Additional Supplies

	Item/Description	Tips	Item #	Thumbnail
Toner Containers
	TK-8117C - ContainerTK-8117C - Container Cyan Toner Container Yield: 6,000 pages Based on printing on letter paper (ISO 19798)	No tooltip available.	1T02P3CUS0
	TK-8117M - ContainerTK-8117M - Container Magenta Toner Container Yield: 6,000 pages Based on printing on letter paper (ISO 19798)	No tooltip available.	1T02P3BUS0
	TK-8117Y - ContainerTK-8117Y - Container Yellow Toner Container Yield: 6,000 pages Based on printing on letter paper (ISO 19798)	No tooltip available.	1T02P3AUS0
	TK-8117K - ContainerTK-8117K - Container Black Toner Container Yield: 12,000 pages Based on printing on letter paper (ISO 19798)	No tooltip available.	1T02P30US0
Additional Supplies
	Item/Description	Tips	Item #	Thumbnail
	SH-10SH-10 Staples (5,000 pieces × 3 Cartridges/Case) Note: 1. DF-470 must be selected to add this option.	SH-10 At least one of the item(s) below must be selected to be able to select this item: DF-470 (1205JS0UN0)	1903JY0000

Complete your configuration

Key Product Features

Speeds up to 30 ppm (B&W and Color)
Media Capacity (std/max): 600 sheets/1,600 sheets
7" Color Touch Screen Panel (ECOSYS M8130cidn) or 4.3" Color Touch Screen Panel (ECOSYS M8124cidn)
High quality output up to 1200 × 1200 dpi (at reduced speed)
50-Sheet Reversing Automatic Document Processor (RADF)

HyPAS-enabled for Kyocera solutions and apps, and KFS enabled
Apple AirPrint^®, Mopria^® and KYOCERA Mobile Print support

Show More Features

Current Configuration

W × D × H 0" × 0" × 0"
0mm × 0mm × 0mm
