Kyocera Product Configurator

ECOSYS M2635dw/M2040dn/M2540dw/M2640idw

Kyocera Product Configurator

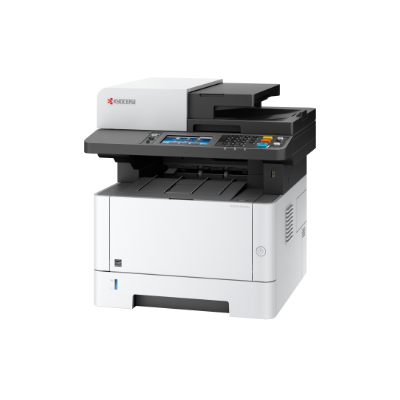

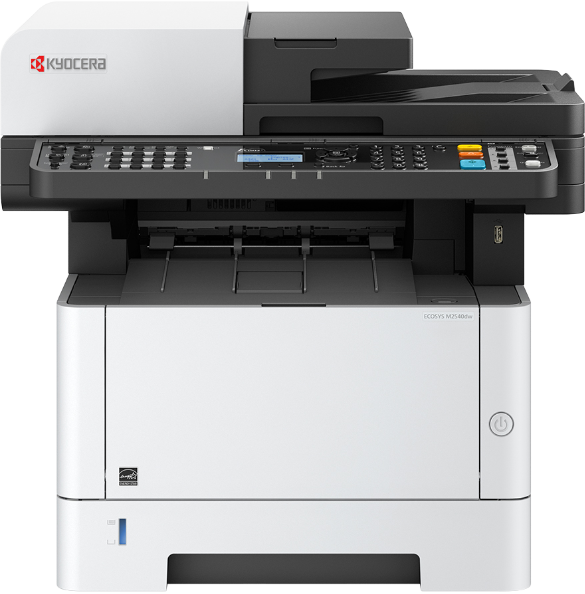

Kyocera ECOSYS M2635dw/M2040dn/M2540dw/M2640idw

B&W MFPs (paper sizes up to 8.5" × 14")

These black-and-white desktop devices offer exceptional print quality and advanced features for the budget conscious business. Easy to use, these multifunctional printers' exceptional reliability, low TCO and ECOSYS long life consumables will ensure maximum uptime, while On-The-Go printing and scanning capabilities will provide users with anytime, anywhere accessibility. With print speeds up to 42 ppm, advanced security features and convenient walk-up USB accessibility, this series of devices can affordably take your business processes to the next level.

Please Note:

Selected items that require additional options will automatically be selected.
Some items are not compatible with other options. Non-compatible options will be disabled from selection.

Step 1: Main Unit

	Item/Description	Tips	Item #	Thumbnail

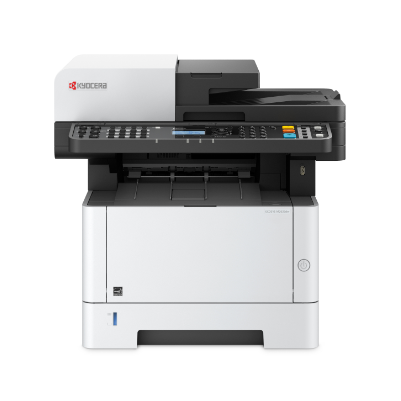

	ECOSYS M2635dwECOSYS M2635dw Configuration: B&W MFP - Print/Scan/Copy/Optional Fax Print Speed: 37 ppm (Letter), 30 ppm (Legal) Power Requirements: 120V, 60Hz, 8.7A Weight: 41.9 lbs. (19 kg) W × D × H (inches): 18.7 × 16.2 × 17.2 W × D × H (mm): 475 × 411 × 437 Note: 1. Includes 50-Sheet Document Processor. 2. The mainframe does ship standard with starter toner (yield: 1,000 pages based on ISO 19752).	ECOSYS M2635dw The items below are not compatible and cannot be selected: TK-1172 - Container (1T02S50US0)	1102S22US0
	ECOSYS M2040dnECOSYS M2040dn Configuration: B&W MFP - Print/Scan/Copy Print Speed: 42 ppm (Letter), 34 ppm (Legal) Power Requirements: 120V, 60Hz, 8.7A Weight: 41.9 lbs. (19 kg) W × D × H (inches): 18.7 × 16.2 × 17.2 W × D × H (mm): 475 × 411 × 437 Note: 1. Includes 50-Sheet Document Processor. 2. The mainframe does ship standard with starter toner (yield: 3,600 pages based on ISO 19752).	ECOSYS M2040dn The items below are not compatible and cannot be selected: TK-1152 - Container (1T02RV0US0)	1102S32US0
	ECOSYS M2540dwECOSYS M2540dw Configuration: B&W MFP - Print/Scan/Copy/Optional Fax Print Speed: 42 ppm (Letter), 34 ppm (Legal) Power Requirements: 120V, 60Hz, 8.7A Weight: 41.9 lbs. (19 kg) W × D × H (inches): 18.7 × 16.2 × 17.2 W × D × H (mm): 475 × 411 × 437 Note: 1. Includes 50-Sheet Document Processor. 2. The mainframe does ship standard with starter toner (yield: 3,600 pages based on ISO 19752).	ECOSYS M2540dw The items below are not compatible and cannot be selected: TK-1152 - Container (1T02RV0US0)	1102S42US0

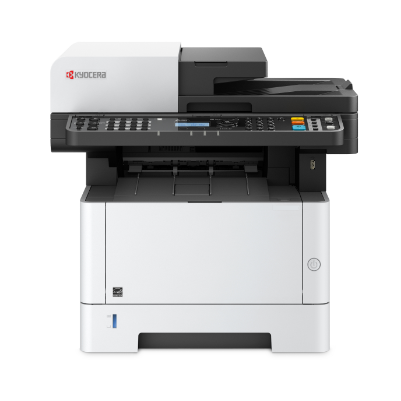

	ECOSYS M2640idwECOSYS M2640idw Configuration: B&W MFP - Print/Scan/Copy/Optional Fax Print Speed: 42 ppm (Letter), 34 ppm (Legal) Power Requirements: 120V, 60Hz, 8.7A Weight: 41.9 lbs. (19 kg) W × D × H (inches): 18.7 × 16.2 × 17.2 W × D × H (mm): 475 × 411 × 437 Note: 1. Includes 50-Sheet Document Processor. 2. The mainframe does ship standard with starter toner (yield: 3,600 pages based on ISO 19752).	ECOSYS M2640idw The items below are not compatible and cannot be selected: TK-1152 - Container (1T02RV0US0)	1102S52US0

Step 2: Paper Handling & Cabinet Options

	Item/Description	Tips	Item #	Thumbnail

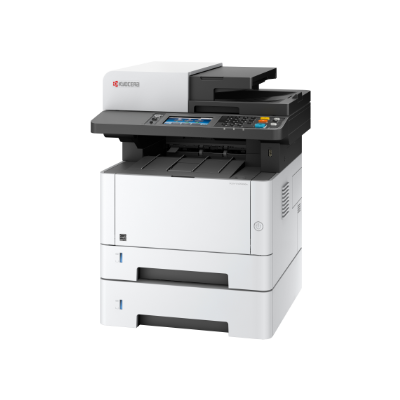

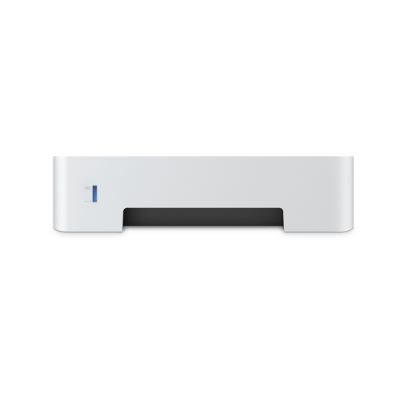

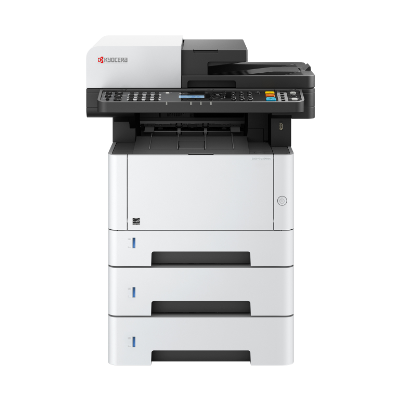

	PF-1100PF-1100 250-Sheet Paper Tray - Legal Paper Size: 5.5" × 8.5" – 8.5" × 14" Paper Weight: 16 lb. Bond – 90 lb. Index (60 – 163 gsm) Weight: 6.4 lbs. (2.9 kg) W × D × H (inches): 14.8 × 15.5 × 3.9 W × D × H (mm): 376 × 394 × 99 Note: 1. Up to two of this option can be added.	No tooltip available.	1203RA0UN0

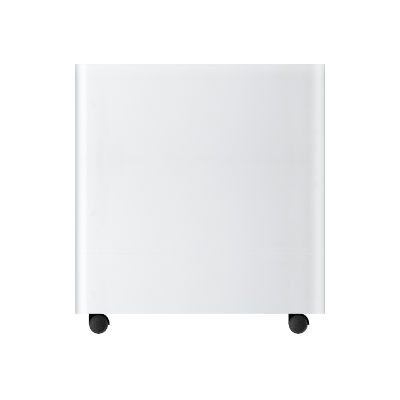

	Cabinet StandCabinet Stand ECOSYS M2640idw and P2040dw Series Cabinet Weight: 28.7 lbs. (13 kg) W × D × H (inches): 14.8 × 15.5 × 20.1 W × D × H (mm): 376 × 394 × 511	No tooltip available.	855D200944

Step 3: Device Accessories

Step 4: Connectivity Accessories

Step 5: Memory Accessories

	Item/Description	Tips	Item #	Thumbnail

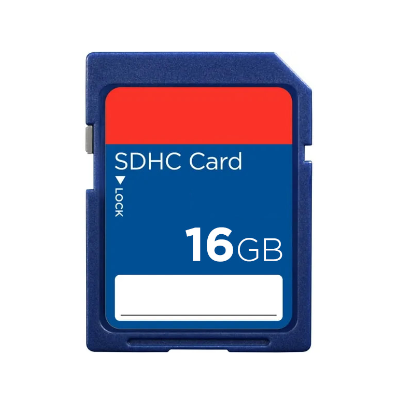

	SDHC Card-16GSDHC Card-16G Secure Digital High Capacity Card Memory for Storage (16 GB) Note: 1. This option cannot be installed with SDHC Card-32G.	SDHC Card-16G The items below are not compatible and cannot be selected: SDHC Card-32G (855D200648)	855D200647

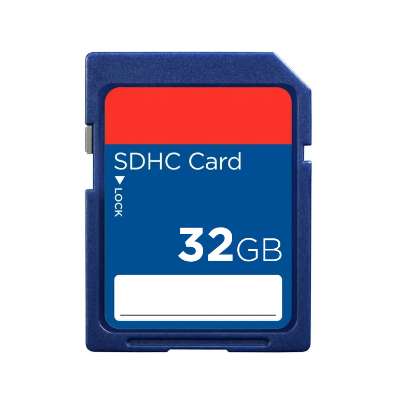

	SDHC Card-32GSDHC Card-32G Secure Digital High Capacity Card Memory for Storage (32 GB) Note: 1. This option cannot be installed with SDHC Card-16G.	SDHC Card-32G The items below are not compatible and cannot be selected: SDHC Card-16G (855D200647)	855D200648

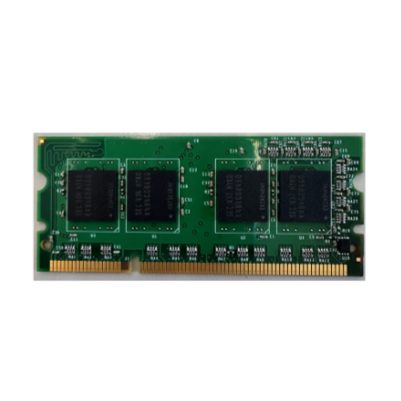

	SD-144-1GB (DDR3)SD-144-1GB (DDR3) Printer DIMM Memory (1 GB) High-speed Dynamic Random-Access Memory Internally Configured	No tooltip available.	855D200662

Step 6: Software Accessory Options

Please Note:

The mainframe does ship standard with starter toners.

Step 7: Consumables & Additional Supplies

	Item/Description	Tips	Item #	Thumbnail

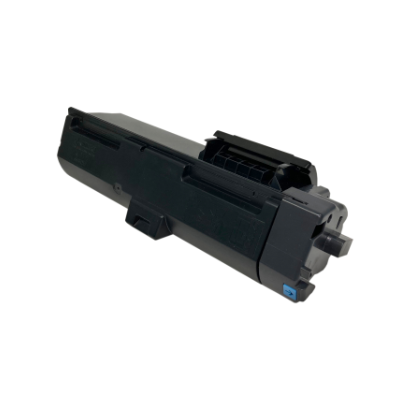

	TK-1172 - ContainerTK-1172 - Container Black Toner Container Yield: 7,200 pages Based on printing on letter paper (ISO 19752) Note: 1. ECOSYS M2640idw, ECOSYS M2540dw or ECOSYS M2040dn must be selected to add this option.	TK-1172 - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS M2640idw (1102S52US0) ECOSYS M2540dw (1102S42US0) ECOSYS M2040dn (1102S32US0)	1T02S50US0

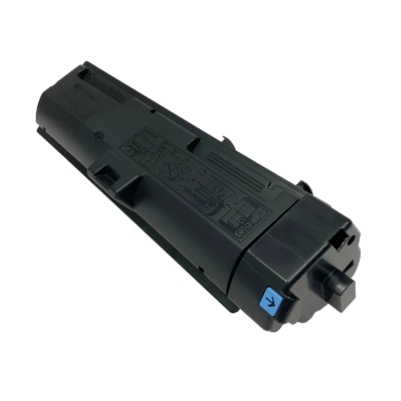

	TK-1152 - ContainerTK-1152 - Container Black Toner Container Yield: 3,000 pages Based on printing on letter paper (ISO 19752) Note: 1. ECOSYS M2635dw must be selected to add this option.	TK-1152 - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS M2635dw (1102S22US0)	1T02RV0US0

Complete your configuration

Key Product Features

Speeds up to 42 ppm B&W
Media Capacity (std/max): 350 sheets/850 sheets
Up to 4.3" Color Touch Screen Panel
High quality output up to Fine 1200 dpi
Standard wireless and Wi-Fi Direct (excluding the M2040dn)

HyPAS-enabled for Kyocera solutions and apps (M2640idw only), and KFS enabled
Apple AirPrint^®, Mopria^® and KYOCERA Mobile Print support

Show More Features

Current Configuration

W × D × H 0" × 0" × 0"
0mm × 0mm × 0mm
