Kyocera Product Configurator

ECOSYS M2635dw/MA4000x/MA4000wfx/MA4000wifx

Kyocera Product Configurator

Kyocera ECOSYS M2635dw/MA4000x/MA4000wfx/MA4000wifx

B&W MFPs (paper sizes up to 8.5" × 14")

These black-and-white desktop multifunctional printers offer high print quality, advanced features, and user-friendly operation for budget-conscious businesses. With exceptional reliability, low TCO, and ECOSYS long-life consumables, they maximize uptime. On-the-Go printing and scanning capabilities, print speeds up to 42 ppm, advanced security features, and walk-up USB accessibility provide convenient, efficient, and secure business processes. Get ready to streamline your workflow with the ECOSYS M2635dw/MA4000x/MA4000wfx/MA4000wifx series.

Please Note:

Selected items that require additional options will automatically be selected.
Some items are not compatible with other options; non-compatible options will be disabled from selection.

Step 1: Main Unit

	Item/Description	Tips	Item #	Thumbnail
	ECOSYS M2635dwECOSYS M2635dw Configuration: B&W MFP - Print/Scan/Copy/Optional Fax Print Speed: 37 ppm (Letter), 30 ppm (Legal) Power Requirements: 120V, 60Hz, 8.7A Weight: 41.9 lbs. (19 kg) W × D × H (inches): 18.7 × 16.2 × 17.2 W × D × H (mm): 475 × 411 × 437 Note: 1. Includes a 50-Sheet Document Processor. 2. The mainframe does ship standard with starter toner (yield: 1,000 pages based on ISO 19752).	ECOSYS M2635dw The items below are not compatible and cannot be selected: TK-1272 - Container (1T0C140US0)	1102S22US0
	ECOSYS MA4000xECOSYS MA4000x Configuration: B&W MFP - Print/Scan/Copy Print Speed: 42 ppm (Letter), 34 ppm (Legal) Power Requirements: 120V, 60Hz, 8.9A Weight: 43 lbs. (19.5 kg) W × D × H (inches): 18.7 × 16.2 × 17.2 W × D × H (mm): 475 × 411 × 437 Note: 1. Includes a 50-Sheet Document Processor. 2. The mainframe does ship standard with starter toner (yield: 3,600 pages based on ISO 19752).	ECOSYS MA4000x The items below are not compatible and cannot be selected: TK-1152 - Container (1T02RV0US0)	110C142US0
	ECOSYS MA4000wfxECOSYS MA4000wfx Configuration: B&W MFP - Print/Scan/Copy/Fax Print Speed: 42 ppm (Letter), 34 ppm (Legal) Power Requirements: 120V, 60Hz, 8.9A Weight: 43 lbs. (19.5 kg) W × D × H (inches): 18.7 × 16.2 × 17.2 W × D × H (mm): 475 × 411 × 437 Note: 1. Includes a 50-Sheet Document Processor. 2. The mainframe does ship standard with starter toner (yield: 3,600 pages based on ISO 19752).	ECOSYS MA4000wfx The items below are not compatible and cannot be selected: TK-1152 - Container (1T02RV0US0)	110C1C2US0
	ECOSYS MA4000wifxECOSYS MA4000wifx Configuration: B&W MFP - Print/Scan/Copy/Fax Print Speed: 42 ppm (Letter), 34 ppm (Legal) Power Requirements: 120V, 60Hz, 8.9A Weight: 43 lbs. (19.5 kg) W × D × H (inches): 18.7 × 16.2 × 17.2 W × D × H (mm): 475 × 411 × 437 Note: 1. Includes a 50-Sheet Document Processor. 2. The mainframe does ship standard with starter toner (yield: 3,600 pages based on ISO 19752).	ECOSYS MA4000wifx The items below are not compatible and cannot be selected: TK-1152 - Container (1T02RV0US0)	110C1D2US0

Step 2: Paper Handling & Cabinet Options

	Item/Description	Tips	Item #	Thumbnail
	PF-1100PF-1100 250-Sheet Paper Tray - Legal Paper Size: 5.5" × 8.5" – 8.5" × 14" Paper Weight: 16 lb. Bond – 90 lb. Index (60 – 163 gsm) Weight: 6.4 lbs. (2.9 kg) W × D × H (inches): 14.8 × 15.5 × 3.9 W × D × H (mm): 376 × 394 × 99 Note: 1. Up to two of this option can be added.	No tooltip available.	1203RA0UN0
	Cabinet StandCabinet Stand ECOSYS MA4000wifx and PA4000wx Series Cabinet Weight: 28.7 lbs. (13 kg) W × D × H (inches): 14.8 × 15.5 × 20.1 W × D × H (mm): 376 × 394 × 511	No tooltip available.	855D200944

Step 3: Device Accessories

Step 4: Connectivity Accessories

Step 5: Software Accessory Options

	Item/Description	Tips	Item #	Thumbnail
	Card Authentication KitCard Authentication Kit Card Authentication Kit (B) Required for customers that want to purchase a card reader option. Note: 1. For your specific Card Authentication Kit needs, please consult with your Kyocera sales representative for the Kyocera Card Reader best for your business. 2. Photo is for illustrative purposes only. Your device may vary.	No tooltip available.	See-Notes
	UG-50UG-50 TPM (Trusted Platform Module) Provides additional layers of security like Secure Boot and Run Time Integrity check.	No tooltip available.	1503WW0UN0

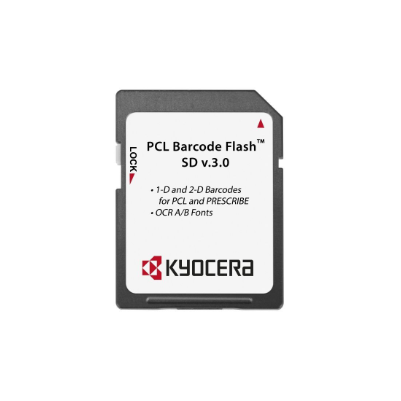

	PCL Barcode Flash 3.0PCL Barcode Flash 3.0 PCL Barcode Flash Type D/E An advanced programming interface supporting PCL Barcodes, our unique Prescribe and OCR fonts.	No tooltip available.	855D200653

Step 6: Memory Accessories

	Item/Description	Tips	Item #	Thumbnail
	SDHC Card-16GSDHC Card-16G Secure Digital High Capacity Card Memory for Storage (16 GB) Note: 1. SDHC or SD required for Job Box and Quick Copy Box. 2. Required for HyPAS Applications on the ECOSYS MA4000wifx. 3. This option cannot be installed with SDHC Card-32G.	SDHC Card-16G The items below are not compatible and cannot be selected: SDHC Card-32G (855D200648)	855D200647
	SDHC Card-32GSDHC Card-32G Secure Digital High Capacity Card Memory for Storage (32 GB) Note: 1. SDHC or SD required for Job Box and Quick Copy Box. 2. Required for HyPAS Applications on the ECOSYS MA4000wifx. 3. This option cannot be installed with SDHC Card-16G.	SDHC Card-32G The items below are not compatible and cannot be selected: SDHC Card-16G (855D200647)	855D200648

Please Note:

The mainframe does ship standard with starter toners.

Step 7: Consumables & Additional Supplies

	Item/Description	Tips	Item #	Thumbnail
	TK-1272 - ContainerTK-1272 - Container Black Toner Container Yield: 10,000 pages Based on printing on letter paper (ISO 19752) Note: 1. ECOSYS MA4000x, ECOSYS MA4000wfx or ECOSYS MA4000wifx must be selected to add this option.	TK-1272 - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS MA4000x (110C142US0) ECOSYS MA4000wfx (110C1C2US0) ECOSYS MA4000wifx (110C1D2US0)	1T0C140US0
	TK-1152 - ContainerTK-1152 - Container Black Toner Container Yield: 3,000 pages Based on printing on letter paper (ISO 19752) Note: 1. ECOSYS M2635dw must be selected to add this option.	TK-1152 - Container At least one of the item(s) below must be selected to be able to select this item: ECOSYS M2635dw (1102S22US0)	1T02RV0US0

Complete your configuration

Key Product Features

Speeds up to 42 ppm B&W
Media Capacity (std/max): 350 sheets/850 sheets
Up to 4.3" Color Touch Screen Panel (MA4000wifx only)
High quality output up to Fine 1200 dpi
Standard wireless and Wi-Fi Direct (excluding the MA4000x)

HyPAS-enabled for Kyocera solutions and apps (MA4000wifx only), and KFS enabled
Apple AirPrint^®, Mopria^® and KYOCERA Mobile Print support

Show More Features
